TB11
Yuan Shan
TB11
Charging+Data Transfer+Video Output+Network+Call Function

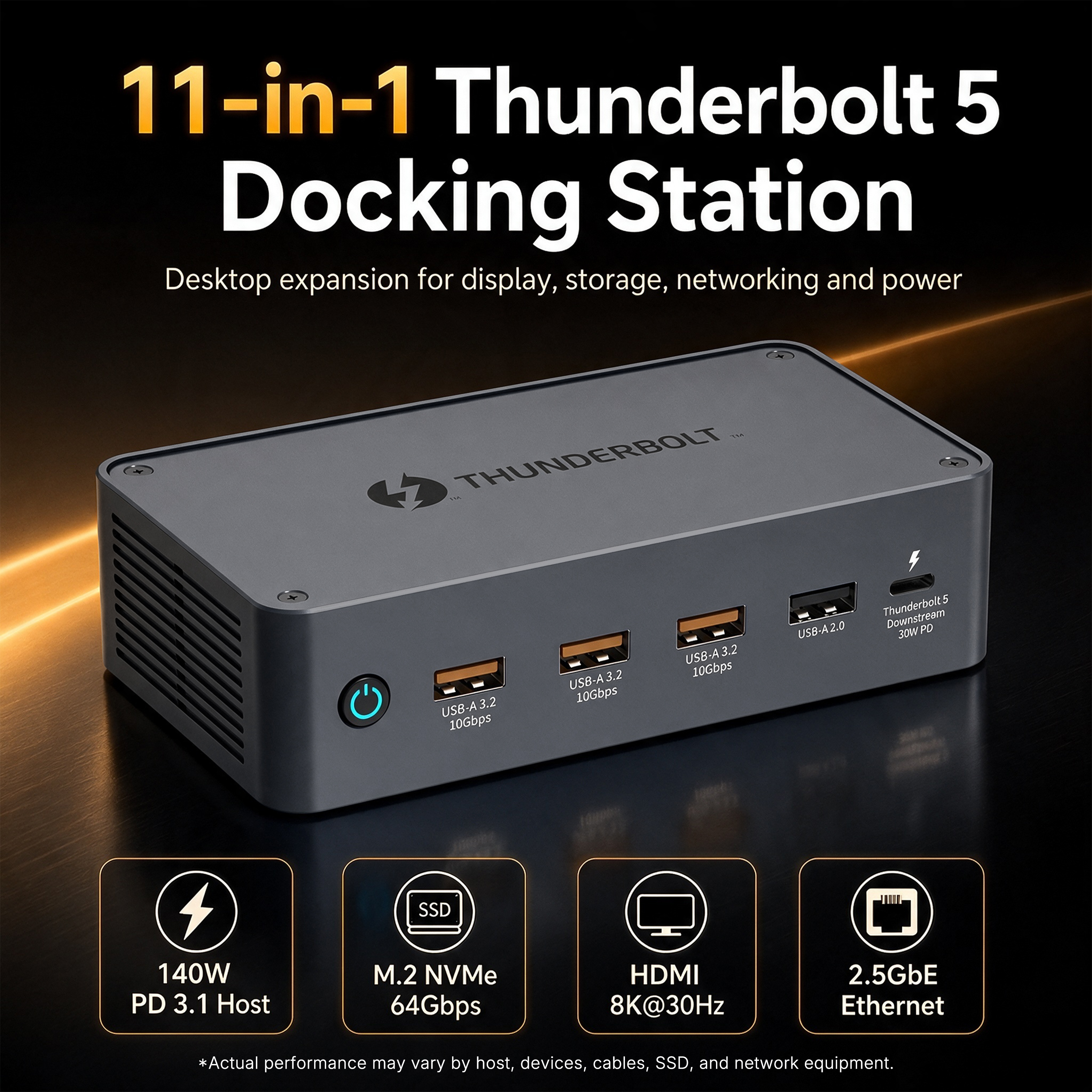

Transform a single Thunderbolt 5 connection into a complete professional workstation with this 11-in-1 Thunderbolt 5 Docking Station. Featuring up to 80Gbps data transfer, 140W PD 3.1 charging, 8K video output, triple-display support, 2.5Gbps Ethernet, 10Gbps USB ports, and an M.2 NVMe SSD slot, it delivers high-performance connectivity for demanding professional workflows.
Powered by Thunderbolt 5 technology, this high-performance docking station provides up to 80Gbps bandwidth through the host Thunderbolt 5 connection.
Connect your laptop to multiple displays, high-speed storage devices, USB peripherals, and wired networks through a single Thunderbolt 5 dock.
The host connection also supports PD 3.1 up to 140W, providing high-power charging for compatible laptops.
Expand your workspace with up to three simultaneous displays.
The Thunderbolt 5 docking station supports:
1 × HDMI 2.1 – up to 8K@60Hz / 4K@240Hz
2 × Thunderbolt 5 downstream – up to 8K@60Hz
All three video outputs support simultaneous display output
This makes the dock an ideal triple monitor docking station for content creators, designers, engineers, developers, and other professionals who need a larger and more productive workspace.

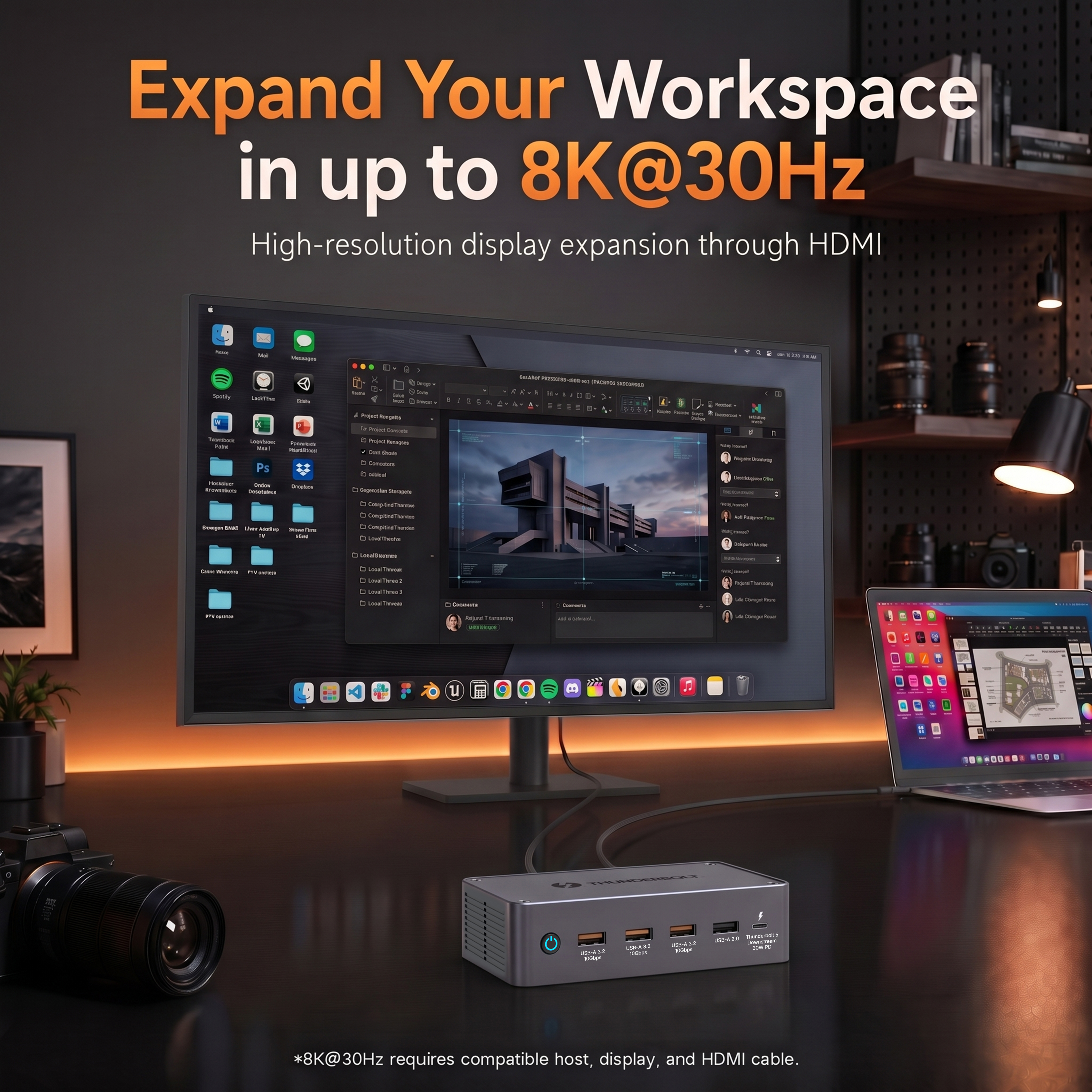

Enjoy high-resolution and high-refresh-rate visuals through the integrated HDMI 2.1 port.
The HDMI output supports up to 8K@60Hz for ultra-high-resolution applications and 4K@240Hz for high-refresh-rate workflows.
Combined with two Thunderbolt 5 video outputs, this 8K docking station provides flexible display expansion for professional workstations.

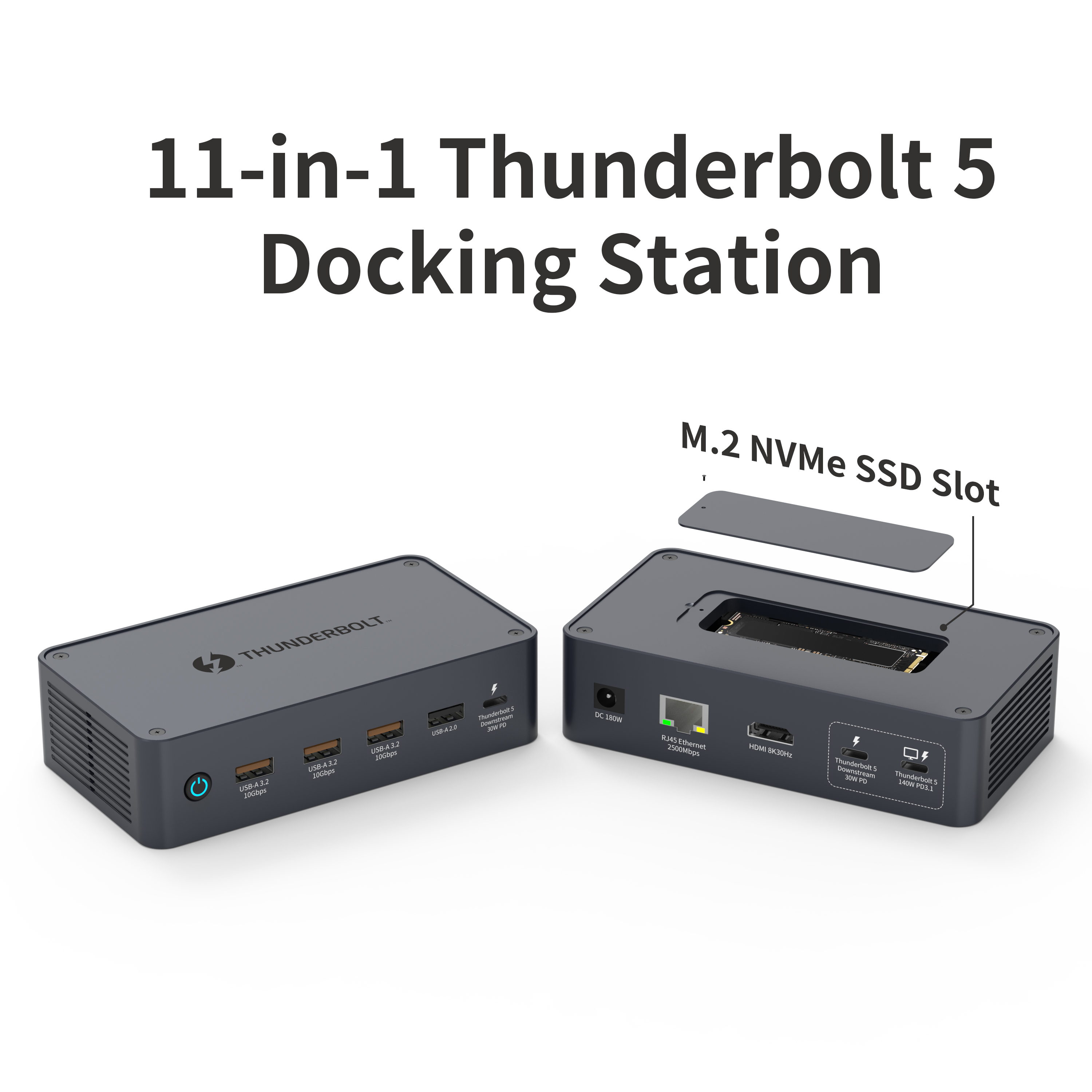

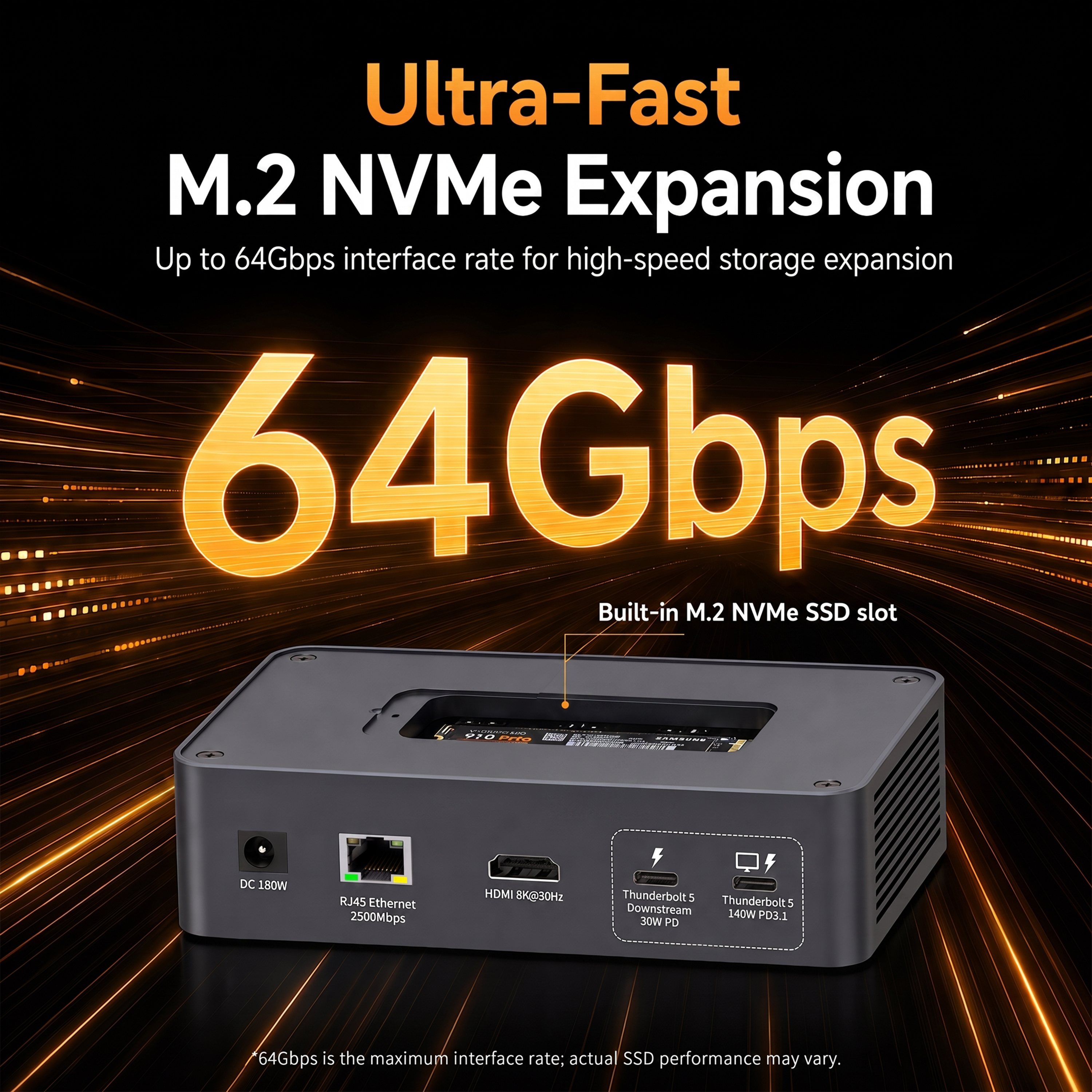

Turn the docking station into a high-speed storage solution with its integrated M.2 NVMe SSD slot.
The M.2 SSD enclosure supports 2230, 2242, 2260, and 2280 NVMe SSDs, with an interface bandwidth of up to 64Gbps.
It provides a convenient way to expand storage capacity while keeping your desktop setup clean and organized.

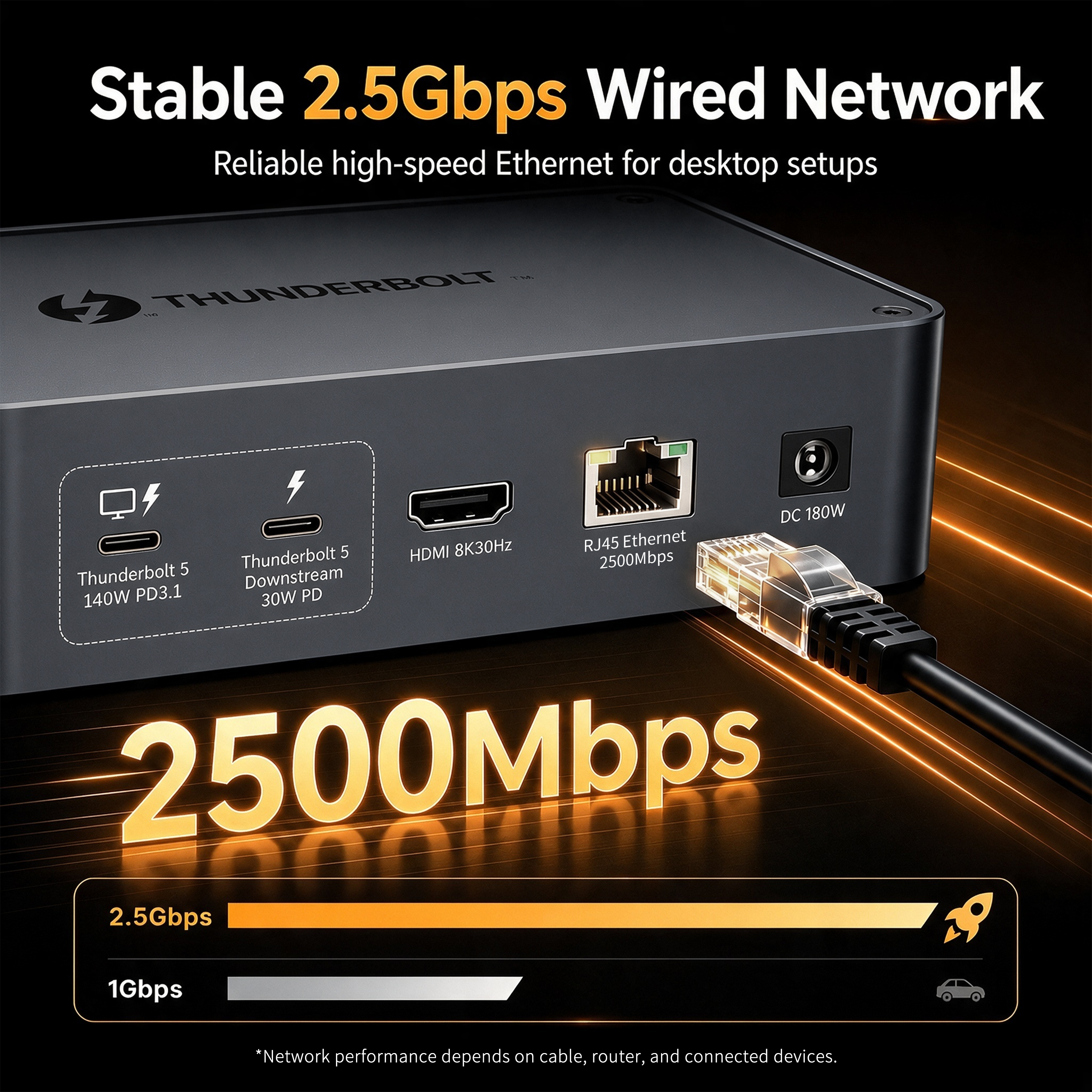

The integrated 2.5Gbps RJ45 Ethernet port provides a faster wired network connection for large file transfers, NAS access, professional applications, online collaboration, and other bandwidth-intensive tasks.
For users working with large media files or network storage, the combination of Thunderbolt 5, 2.5Gb Ethernet, and high-speed NVMe storage creates a powerful desktop connectivity solution.

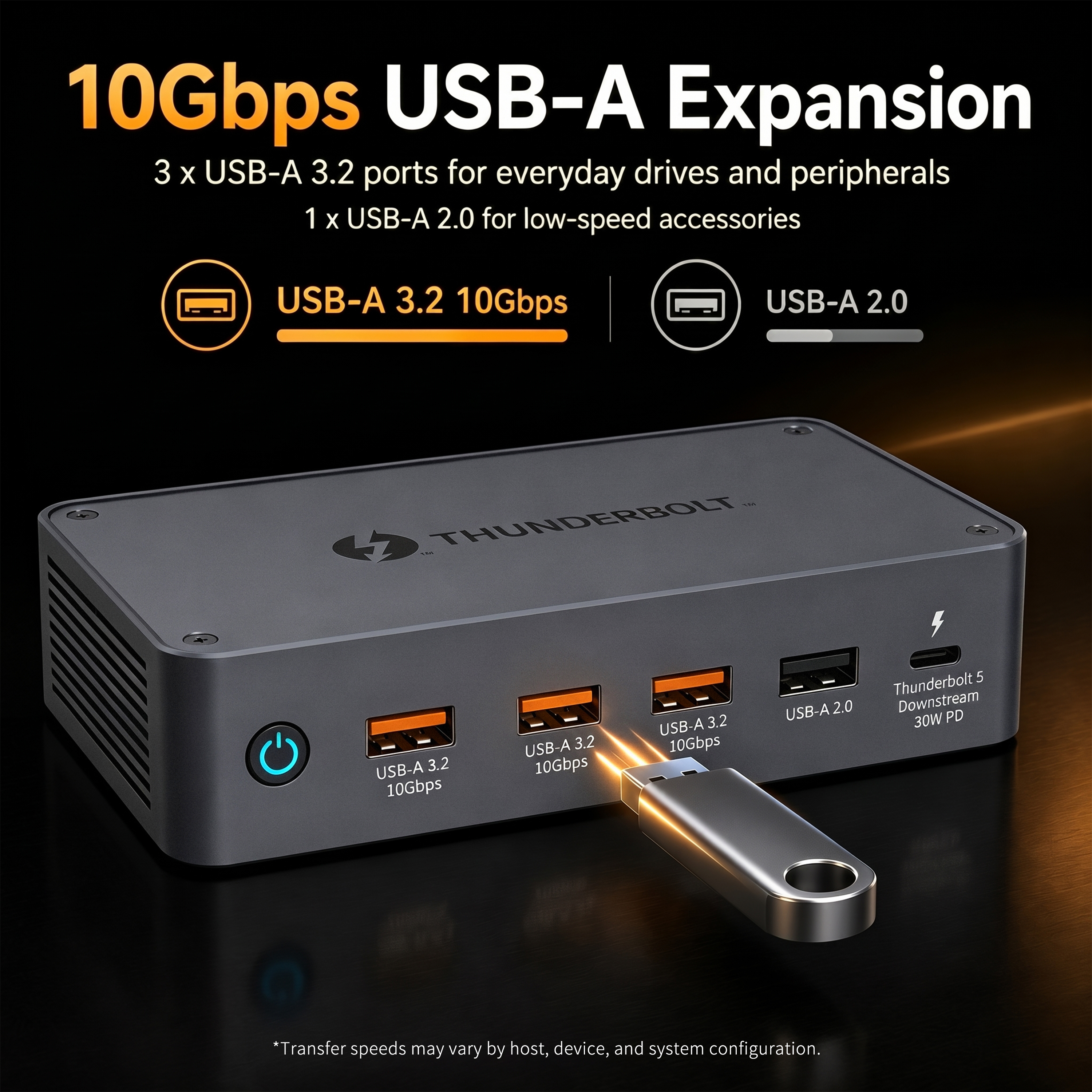

Connect high-speed USB peripherals through three USB-A 3.2 ports with up to 10Gbps data transfer.
An additional USB-A 2.0 port provides 480Mbps connectivity for keyboards, mice, printers, and other standard peripherals.

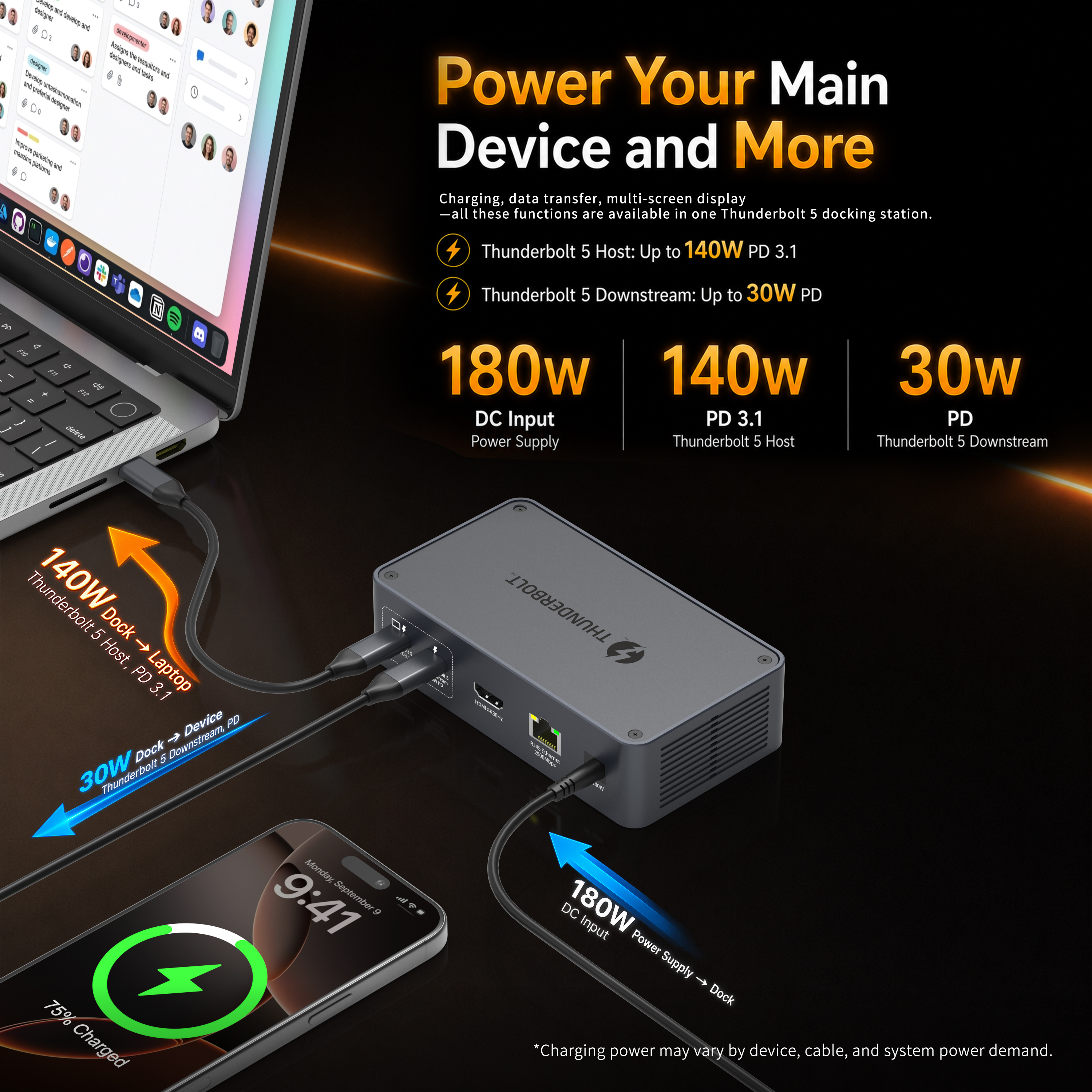

The Thunderbolt 5 host connection supports PD 3.1 charging up to 140W, while the dock accepts up to 180W DC power input.
This provides sufficient power for the docking station, connected peripherals, and compatible high-performance laptops.
The two downstream Thunderbolt 5 ports also support up to 30W PD charging.
Note: Power adapter is not included.
With high-speed data transfer, triple-display support, NVMe SSD expansion, 2.5Gb Ethernet, USB connectivity, and high-power charging, this 11-in-1 Thunderbolt 5 Docking Station is designed to simplify professional desktop setups.
It is suitable for:
Professional workstations
Content creation and video editing
Graphic design and engineering
Software development
Multi-monitor office setups
High-speed external storage
Home office and productivity applications
| Feature | Specification |
|---|---|
| Host Connection | Thunderbolt 5, up to 80Gbps |
| Host Charging | PD 3.1, up to 140W |
| DC Input | 180W |
| HDMI | HDMI 2.1, 8K@60Hz / 4K@240Hz |
| Thunderbolt 5 Downstream | 2 × Thunderbolt 5 |
| TB5 Video Output | Up to 8K@60Hz |
| TB5 Charging | Up to 30W PD |
| Display Support | 3 displays simultaneously |
| Ethernet | 2.5Gbps RJ45 |
| USB-A 3.2 | 3 × 10Gbps |
| USB-A 2.0 | 1 × 480Mbps |
| M.2 SSD | M.2 NVMe, up to 64Gbps |
| SSD Sizes | 2230 / 2242 / 2260 / 2280 |
| Power Adapter | Not included |
Experience the next generation of desktop connectivity with an 11-in-1 Thunderbolt 5 Docking Station built for high-speed data, 8K displays, NVMe storage, fast networking, and high-power charging.
OEM/ODM customization, sample testing, and bulk orders are available. Contact us for product specifications, pricing, and project support.
