Have you ever wished your MacBook Air screen was bigger? Many users struggle with limited space when editing, working, or watching videos. A larger display can boost focus, comfort, and productivity.
From office presentations to classroom projects, connecting to HDMI unlocks new possibilities. Gamers, designers, and streamers also benefit from expanded screens. MacBook Air’s slim design means no built-in HDMI, creating a common challenge.
That’s where a USB-C Hub or a usb c to hdmi adapter comes in. In this post, you’ll learn how to connect your MacBook Air to external displays, discover setup tips, and explore troubleshooting solutions.
Not every MacBook Air connects the same way. The newer 2020–2025 models come equipped with Thunderbolt 4 and USB-C ports. These allow direct video output using a usb c to hdmi adapter or a versatile USB-C Hub. Older machines tell a different story. Pre-2017 versions lack modern USB-C ports, so they rely on legacy connectors. To hook them up to HDMI displays, users often need a Mini DisplayPort to HDMI adapter or Thunderbolt 2 to USB-C adapter. It’s important to check your exact model before buying any cables.
USB-C hub is not just for charging. The port on a MacBook Air can also carry video, but only if it supports DisplayPort Alt Mode. This standard makes it possible to send video signals through a usb c to hdmi connection. Without it, you could plug in an adapter and still see nothing. That is why choosing a USB-C Hub that supports video passthrough becomes so critical. Many hubs provide multiple ports, but only certain ones handle video output. Users need to confirm compatibility so the monitor receives a proper signal.
HDMI has evolved over time. Each version affects what you actually see on screen. HDMI 1.4 limits you to 4K resolution at just 30Hz, which makes motion look choppy. HDMI 2.0 doubles the bandwidth and allows smooth 4K at 60Hz, a far better choice for everyday work or video playback. HDMI 2.1 takes things further by supporting 8K at 60Hz and 4K at 120Hz, though not every display or MacBook Air can push those settings.
Here’s a quick view of the main HDMI versions and what they support:
| HDMI Version | Max Resolution | Max Refresh Rate | Best Use Case |
|---|---|---|---|
| 1.4 | 4K | 30Hz | Basic office tasks, slides |
| 2.0 | 4K | 60Hz | Video editing, streaming |
| 2.1 | 8K | 60Hz / 4K 120Hz | High-end displays, gaming |
When choosing cables, always match the HDMI version to the display you use. A MacBook Air paired with a USB-C Hub that supports HDMI 2.0 ensures sharp visuals without lag.

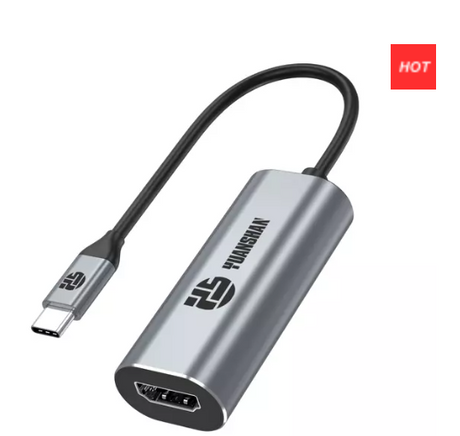

A basic usb c to hdmi adapter is the most straightforward solution for connecting a MacBook Air to an external display. It plugs directly into the USB-C port and provides a single HDMI output. The setup is nearly instant, making it attractive for users who simply want to mirror their laptop screen on a TV or use a larger monitor. For casual use, such as presentations or occasional streaming, it’s reliable and cost-effective. However, its biggest limitation is functionality. An adapter typically does not provide charging capability, nor does it allow the use of extra USB accessories, memory cards, or wired internet connections.

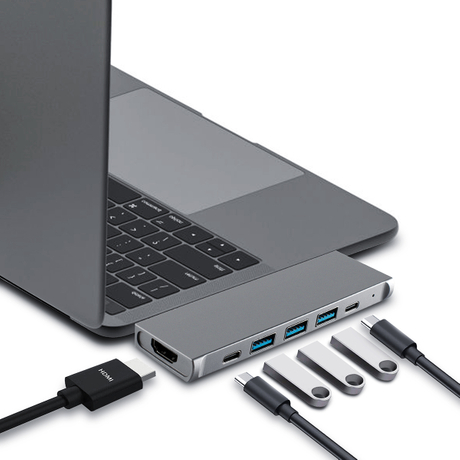

A USB-C Hub, on the other hand, transforms the experience into something far more versatile. In addition to HDMI output, most hubs include multiple USB-A or USB-C ports, SD card readers, and Ethernet jacks. Many also support Power Delivery, allowing the MacBook Air to charge while the hub is in use. This means you can run an external monitor, transfer files from a flash drive, and stay connected to the internet—all at once. For students who juggle schoolwork, travelers who need compact connectivity, and professionals in an office environment, that flexibility is a game-changer. Essentially, the hub takes the slim design of the MacBook Air and expands it into a functional workstation without sacrificing portability.
| Option | Pros | Cons |
|---|---|---|
| USB-C to HDMI | Simple, affordable, small, easy setup | Only video output, no charging |
| USB-C Hub | HDMI + extra ports, power delivery, Ethernet support | Larger, more costly |

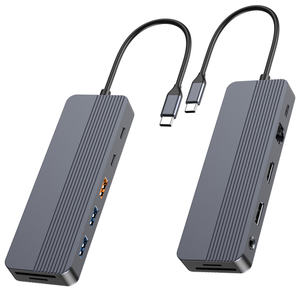

Some users need more than a hub. A docking station becomes useful when running multi-monitor setups. Creative professionals, gamers, or analysts often work across dual or even quad 4K displays. A dock makes it possible by offering multiple HDMI or DisplayPort outputs.
Another reason to pick a docking station is power. The MacBook Air can draw up to 67W charging, and docks often supply strong, stable power delivery. It ensures the laptop stays charged even during long sessions. Workstations that connect multiple high-power devices, such as external drives and cameras, also benefit from the reliability of a docking station.
Before connecting, gather a few essentials. A compatible USB-C Hub or a usb c to hdmi adapter is required for video output. Use an HDMI 2.0 or HDMI 2.1 cable to enjoy smooth 4K visuals. Make sure the external display or TV is powered on and set to the correct input. Having these items ready prevents unnecessary interruptions later.
Start by plugging the USB-C Hub directly into the MacBook Air’s USB-C port. Then attach one end of the HDMI cable to the hub, and the other end to your display. If the hub includes power delivery support, connect a charging cable as well. This keeps the MacBook charged during long sessions.
| Step | Action | Result |
|---|---|---|
| 1 | Insert USB-C Hub into MacBook Air | Hub activates |
| 2 | Connect HDMI cable to hub and display | Screen should mirror instantly |
| 3 | Plug in PD cable if hub supports charging | Laptop charges while in use |
Once the physical connection is complete, open the display settings on macOS. To mirror the MacBook screen, select the “Mirror Displays” option in the Arrangement menu. For extending the screen, drag the display icons into the desired order. Adjust resolution and refresh rate manually if needed, especially for 4K at 60Hz. It ensures smooth playback and crisp text. You can also choose a primary display, which places the menu bar and dock on your preferred screen. This customization helps align the workflow with personal needs.
Sometimes the display stays dark even after connecting a usb c to hdmi adapter or a USB-C Hub. Open System Settings > Displays and hold the Option key to reveal the “Detect Displays” button. Clicking it often forces the Mac to recognize the screen. If that fails, try unplugging the hub and HDMI cable, then reconnect. Restarting the MacBook Air can also reset the video handshake between devices.
A common issue happens when the monitor shows 4K but only at 30Hz. This usually occurs when using HDMI 1.4 cables or older hubs. For smoother performance, HDMI 2.0 or newer is required to reach 4K at 60Hz. Another factor is software. macOS updates often improve display handling, so an outdated version may limit refresh rates.
| Cause | Likely Fix |
|---|---|
| HDMI 1.4 cable or hub | Upgrade to HDMI 2.0 or newer |
| Outdated macOS | Update to latest version |
| Incorrect display settings | Manually adjust refresh rate in menu |
Sometimes the video works but no sound comes through the external screen. To fix this, go to System Settings > Sound > Output and select the HDMI device as the audio output. If nothing appears, unplug the hub and reconnect. For Mac mini users, disconnecting headphones can also help since it may block HDMI audio.
If the screen flickers or lags, the issue often comes from unstable power. Budget hubs sometimes fail to provide enough current for both charging and video. Plugging in a stronger power delivery cable helps. Firmware also matters. Many hubs release updates to improve HDMI stability, and macOS updates can also fix flicker issues. Rebooting both the MacBook Air and the external display may clear temporary conflicts.

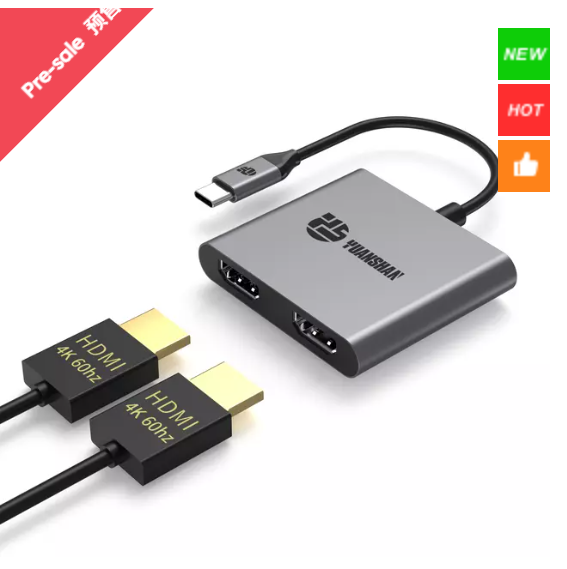

Many people want more than one external screen. A usb c to hdmi adapter can handle a single display, but dual setups need a USB-C Hub that supports MST, also known as Multi-Stream Transport. On Windows, MST makes it easy to extend across multiple monitors. On macOS, however, support is more limited. Instead of extending two separate displays, the system often mirrors them. To get around this, some hubs use software drivers, though performance can vary. Always confirm the MacBook model and the operating system before investing in a multi-display solution.
A crisp 4K screen requires more than just resolution. Users can enable HiDPI scaling in macOS, which improves text sharpness and balances interface size. It makes reading easier without sacrificing detail. Refresh rate also matters. Many hubs and cables support 4K at 60Hz, but only if both the MacBook Air and the monitor allow it. Choosing the correct setting in System Settings > Displays ensures smooth animations and sharp video playback.
| Setting | Effect | Best Use Case |
|---|---|---|
| 4K at 30Hz | Lower smoothness, less demanding on GPU | Presentations, slides |
| 4K at 60Hz | Smooth motion, better for work and media | Editing, streaming |

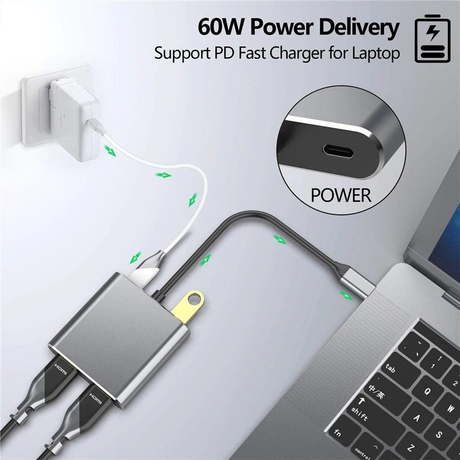

Connecting an external display uses more energy than people expect. The MacBook Air 13-inch typically needs around 30W, while the 15-inch version may draw closer to 67W. If the USB-C Hub only delivers 45W, the battery can slowly drain even while plugged in. That is why choosing a hub offering 100W PD is ideal. It does not mean the laptop takes 100W; it simply ensures enough overhead for stable charging plus peripherals. Keeping the MacBook fully powered allows longer sessions without sudden battery loss.
Using usb c to hdmi on a MacBook Air requires the right hub or adapter. The decision depends on each setup. For travel, a compact adapter works well. In an office, a USB-C Hub supporting multiple ports offers more flexibility. Creative work often benefits from docks that handle dual or quad monitors. A high-quality USB-C Hub guarantees not only a stable HDMI connection but also reliable charging and extra functionality for daily tasks.
A: Newer MacBook Air models do not have a built-in HDMI port. You’ll need either a usb c to hdmi adapter or a USB-C Hub that supports video output.
A: The issue usually comes from using HDMI 1.4 cables or older hubs. Switch to HDMI 2.0 or newer, and check macOS display settings for 4K at 60Hz.
A: Yes, if the hub supports Power Delivery (PD). Look for one offering 60W–100W PD to prevent battery drain during extended use.
A: macOS limits extended dual display support on many MacBook Air models. Some USB-C Hubs use MST or DisplayLink software, but often the system mirrors screens instead of extending them.
A: Go to System Settings > Sound > Output and select the HDMI device. If it still fails, reconnect the hub and cable, or restart the MacBook Air.
