HDMI cables and adapters are key for Nintendo Switch TV connections. They affect picture quality and frame rates directly. Different Switch models have specific HDMI needs, especially the new Switch 2. This guide covers standard cables, setup steps, buying tips and Yuanshan’s top adapter. It’s helpful for new and upgrading players alike.
The original Switch comes with a Nintendo-branded HDMI cable. Its model number is WUP-008, same as the Wii U’s cable. It follows HDMI 1.4 standards. It supports 1080p at 60Hz and 4K at 30Hz. The cable is 4.92 feet long. It meets basic TV or monitor connection needs for most users.
The OLED model includes a different HDMI cable. Its model number is HEG-005. It works with the console’s HDMI 2.0 port. But it still only supports 1080p at 60Hz due to console limits. This cable is more flexible and softer than the original. It’s easier to use in tight spaces like small TV cabinets. Its HDMI port sits in the middle, above the LAN port. This differs from the original’s bottom port position.
Switch 2 comes with an Ultra High Speed HDMI 2.1 cable. It supports 4K at 60Hz and 1080p at 120Hz. It also works with VRR and HDR features. This cable is a must for full TV mode performance. You can’t replace it with older cables. Switch 2 needs its special NGN-01 power adapter too. The old HAC-002 adapter only charges, not for TV output.
The Switch Lite is strictly for handheld use. It has no HDMI port. So it doesn’t come with an HDMI cable. You can’t connect it to TVs or monitors.
Nintendo clearly states Switch 2’s HDMI rules. You must use the included Ultra High Speed cable. Without it, you can’t get features like 4K at 60Hz. The company wants users to enjoy the console’s full potential.
Old Switch HDMI 1.4 cables physically fit Switch 2. But they only support 4K at 30Hz or 1080p at 60Hz. This wastes the new console’s power. Gamers may see frame drops and blurry images. These issues are worse on 4K TVs. HDR won’t work either, ruining visual quality.
HDMI 2.0 works well for most Switch 2 users. It supports 4K at 60Hz and HDR. Most existing 4K TVs have HDMI 2.0 ports. You don’t need to buy a new TV. HDMI 2.1 offers extra benefits. It supports 1080p at 120Hz for future games. It also has ALLM for faster device switching. For basic use, HDMI 2.0 is enough. For top performance, go with HDMI 2.1. Yuanshan’s adapters cover both needs.
Prepare the dock: Open the back door. Plug the HDMI cable/adapter into HDMI OUT. Connect the power cord to the AC port. Close the door and plug into a wall outlet.
Attach Joy-Cons: Slide them onto the Switch’s sides. Register them first for wireless use.
Dock the Switch: Align the bottom port with the dock. Slide in until it connects securely.
Connect to TV: Find the TV’s HDMI IN ports. Pick the lowest-numbered available one. Plug in the other end of the HDMI cable/adapter.
Turn on the system: Press the Switch’s power button.
Select the right TV input: Use the TV remote. Press Source or Input. Cycle until you find the Switch’s input. Confirm if needed.
Finish setup: Follow on-screen prompts to calibrate the display.
Original/Switch 2: HDMI ports are at the bottom, below USB ports.
OLED model: HDMI ports are in the middle, above LAN ports. Its flexible cable fits tight spots better.
Switch 2: Always check for the NGN-01 power adapter. Wrong adapters cause connection failures. Ensure adapter compatibility with your HDMI device.
Version needs: Original/OLED models need HDMI 1.4 or newer. Switch 2 needs HDMI 2.0 or newer. Look for “High Speed” certification. CE FCC RoHS certifications are also important.
Physical features: Choose 3-6 feet for home use. Pick aluminum alloy shells for durability. They also reduce signal interference.
Cable selection: Choose genuine HDMI 2.1 cables supporting 48Gbps. Avoid cheap fake ones that can’t do 4K at 60Hz.
Multi-device setups: Use a 4K HDMI switch. It lets you connect Switch 2 and other devices to one TV port. No more frequent plugging and unplugging.
Yuanshan started in 2016. It specializes in USB-C hubs and adapters. It has a 2,000-square-meter factory. There are 6 production lines with a daily output of 5,000 units. Its products passed CE FCC RoHS certifications. They’ve been shown at 20+ international shows like Canton Fair and CES. You can trust its quality and compliance.

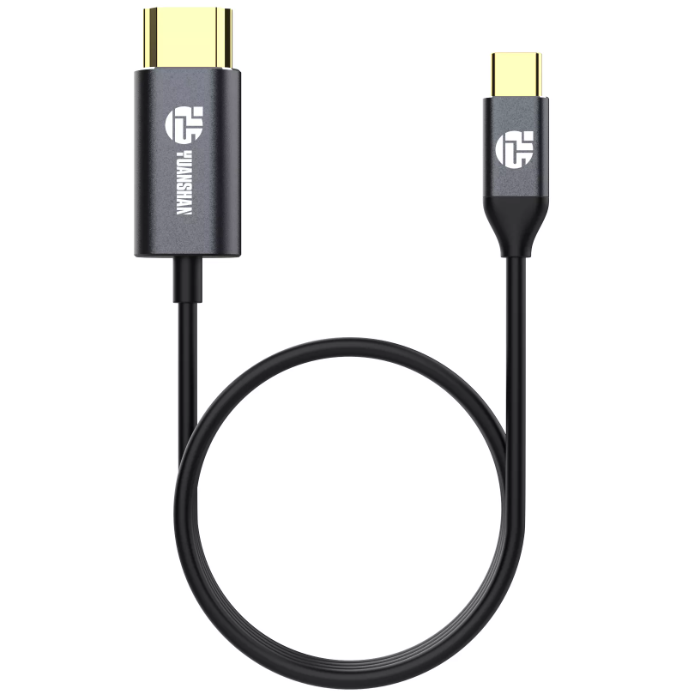

| Feature | Details |
|---|---|
| Model | YSTC9823G |
| HDMI Version | 2.0 |
| Output | 4K@60Hz |
| Length | 1.8 meters |
| Material | Aluminum alloy shell |
| Compatibility | Switch series, MacBook, iPad, laptops, Android devices |
| Special Features | Plug-and-play, free black/white logo printing, OEM/ODM support |
| Packaging | 200pcs/box, 15kg/box, 3332.529cm |
This adapter works perfectly with all Switch models. It handles Switch 2’s 4K at 60Hz and older models’ 1080p at 60Hz. The 1.8-meter length fits most home and office setups. The aluminum alloy shell is sturdy and anti-interference. It’s plug-and-play, no extra drivers needed. New users can set it up quickly. It also works with other devices like MacBooks for presentations. For bulk orders, free logo printing is available (black or white). OEM/ODM services are offered too.
Yuanshan provides professional quotes for all orders. It caters to both individual and business customers. Its stable production capacity ensures timely bulk deliveries. You get high performance without high costs.
Uncertified cheap cables/adapters: They often have signal issues and poor quality.
Mismatched interfaces: Check if the product fits your Switch dock.
Low-quality materials: Non-metal shells and shoddy wires break easily. They also ruin signal quality.
Can I use the original Switch’s HDMI cable for the OLED model?
Yes, but Yuanshan’s YSTC9823G HDMI Adapter is more versatile. It works with multiple devices.
Does Yuanshan’s YSTC9823G support Switch 2’s 4K@60Hz output?
Yes, it’s HDMI 2.0 and meets Switch 2’s needs.
Can I use this adapter to cast iPad content to a TV?
Yes, it’s compatible with iPad and other USB-C devices.
Is logo customization available for bulk orders?
Yes, free black/white logo printing is offered. Contact for quotes and OEM/ODM details.
What’s the warranty for Yuanshan’s adapter?
It comes with industry-standard warranty. Contact customer service for specifics.
Choosing the right HDMI product is crucial for Switch gaming. Original/OLED users need HDMI 1.4 or newer. Switch 2 users must use HDMI 2.0 or higher. Yuanshan’s YSTC9823G adapter stands out as a top choice. It offers 4K@60Hz output, multi-device compatibility and durable aluminum alloy design. It’s certified for quality and safety. For regular gamers, it meets daily connection needs. For Switch 2 users, it delivers full performance at a great price. For office workers, it handles both presentations and gaming. Businesses can take advantage of its customization services to build their own branded products. Pick Yuanshan for a reliable and versatile HDMI solution.
